Quick Specs

Current Rating50 to 600 amps
Operating Voltage4.8 to 36 VDC
Voltage Drop at Max Current10 to 40 mV
Temperature Range-40 to +105 C
Weight14.7 ounces
Small Package6.33” x 4.31″ x 1.80″
Medium Package7.78″ x 5.13″ x 1.95″
Large Package8.58″ x 6.63″ x1.89″
  • OR’s two sources to a single load
  • Designed to switch DC current from a source to a load
  • Low voltage , high current capability
  • Industry-leading ultra-low voltage drop
  • Internationally patented arrayed MOSFET technology
  • No heat sinks or airflow required
  • No de-rating required over full temperature range
  • Fully encapsulated solid state design
  • Internationally patented MOSFET technology
  • Recommended by top battery manufacturers
  • MIL-STD-461E Compliant

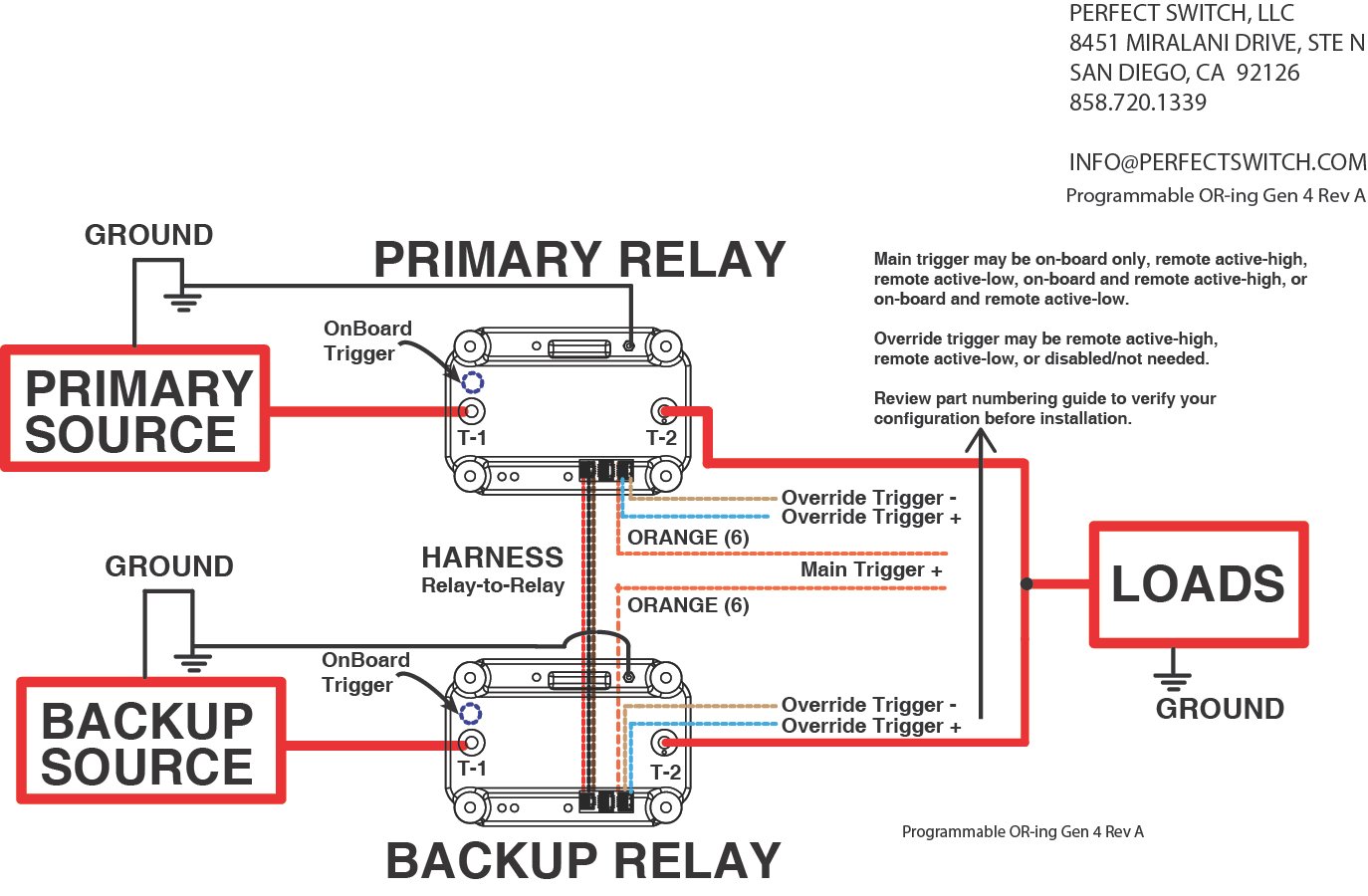

POWER-GATE programmable OR’ing diodes are designed to selectively OR one of two sources to a load. This configuration can be programmed to automatically conduct current from a pre-defined Master source to the load. When the primary source drops to a pre-defined low voltage threshold (or alternate metric), the device will “flip,” and current from the secondary Slave source will drive the load. The customer’s application and performance requirements dictate how the devices will be programmed. This setup is highly customizable so please contact us so we may assist in configuring devices for your application.

POWER-GATE programmable OR’ing diodes provide high performance and reliable switching without the conductive losses and leakage typical of Schottky and/or silicon rectifiers.

Conventional silicon and Schottky rectifiers are attractively priced, but have significant performance issues:

  • substantial voltage drop as current passes
  • conductive losses create significant heat
  • batteries never get fully charged
  • alternator regulators always inaccurate due to diode drop

Programmable OR’ing diodes are constructed based on our internationally patented large MOSFET array technology and are comprised of two bi-directional solid state relays programmed to respond per the customer’s needs. See bi-directional relays here.

Is POWER-GATE suitable for your application? Contact us and let our talented applications engineers help determine what configuration is best for your application.

For OEM applications, military and fleet sales, special applications, or general questions call us 858.720.1339.
